LCD Controlled Off Grid Controller / Off Grid Solar Charge Controller

Off-Grid Wind & Solar Hybrid Controller

PERFORMANCE FEATURES:

◆ Perfect protection and alarming function, thus the system has a high stability
◆ LCD display function, visually display all operation parameters
◆ Voltage-limiting and current-limiting charging mode, ensures battery in the best charging status
◆ PWM stepless unloading mode, which burn the excess power in dump load, making the battery charging in the best status
◆ A multiple communication interface selection, realising PC monitoring function. The standard mode is RS232 communication, and other optional model RS485 / Ethernet/GPRS etc
◆ Optional wind turbine low-voltage charge function, making full use of low wind power
◆ Optional multiple control system function, real-time monitoring the multiple control system at the same time, with well-organized and exact monitoring interface
◆ European CE certification

Model	WWS100A-120	WWS100A-220	WWS100A-240
Rated Wind Turbine Power	10kW
Rated Solar Power	3kW
PV Charge Current	20A	10A	10A
Rated Battery Voltage	120V	220V	240V
Wind Turbine Maximum Input Current	130A	70A	65A
Wind Turbine Maximum Input Power	15KW
Unload Voltage(factory default)	140V	252 V	280 V
Unload Current(factory default)	25A		50A
Control Mode	PWM
Display Mode	LCD
Display Parameters	Wind Turbine Power,Wind Turbine Voltage,Wind Turbine Current, PV Voltage,PV Charge Current,PV Power,Battery Voltage.Etc
Working Temperature & Humidity	-20~+55℃/35~85%RH(Without Condensation)
Protection Function	Solar reverse-charging protection , solar reverse-connection protection, battery over charge protection,battery over-discharge protection, battery reverse-connection protection, lightning protecting, wind turbine current limitting, wind turbine automatic brake and manual brake.
In order to serve our customers better.Our company can adjust parameters configuration according to customer’s requirement.

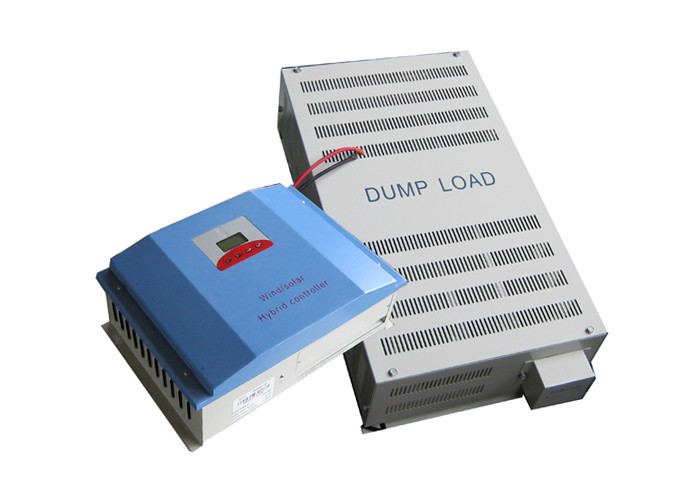

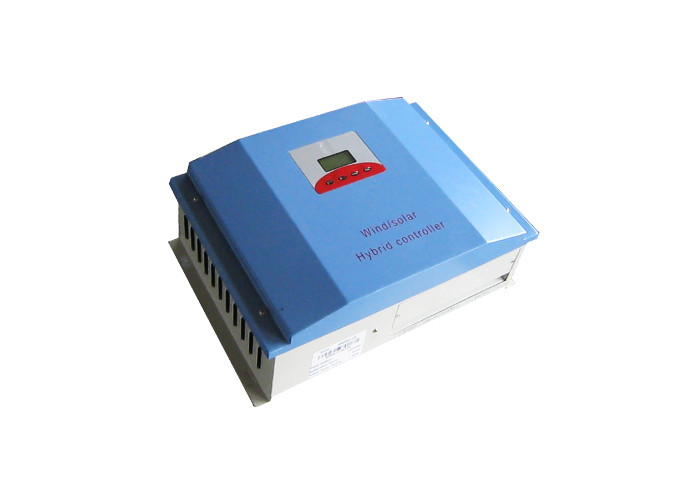

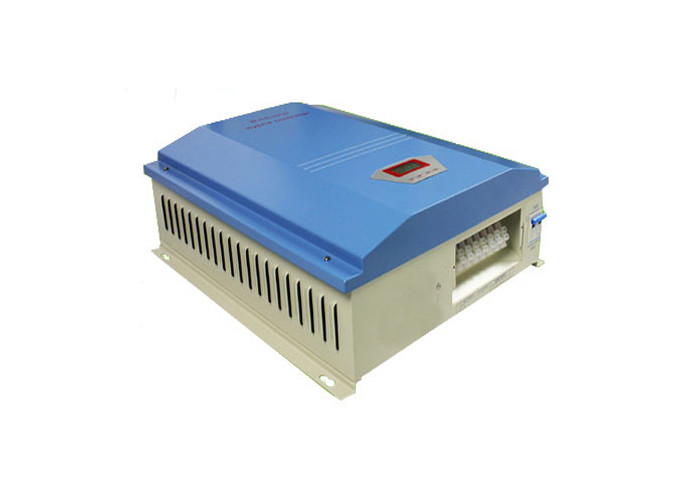

Detailed Pictures

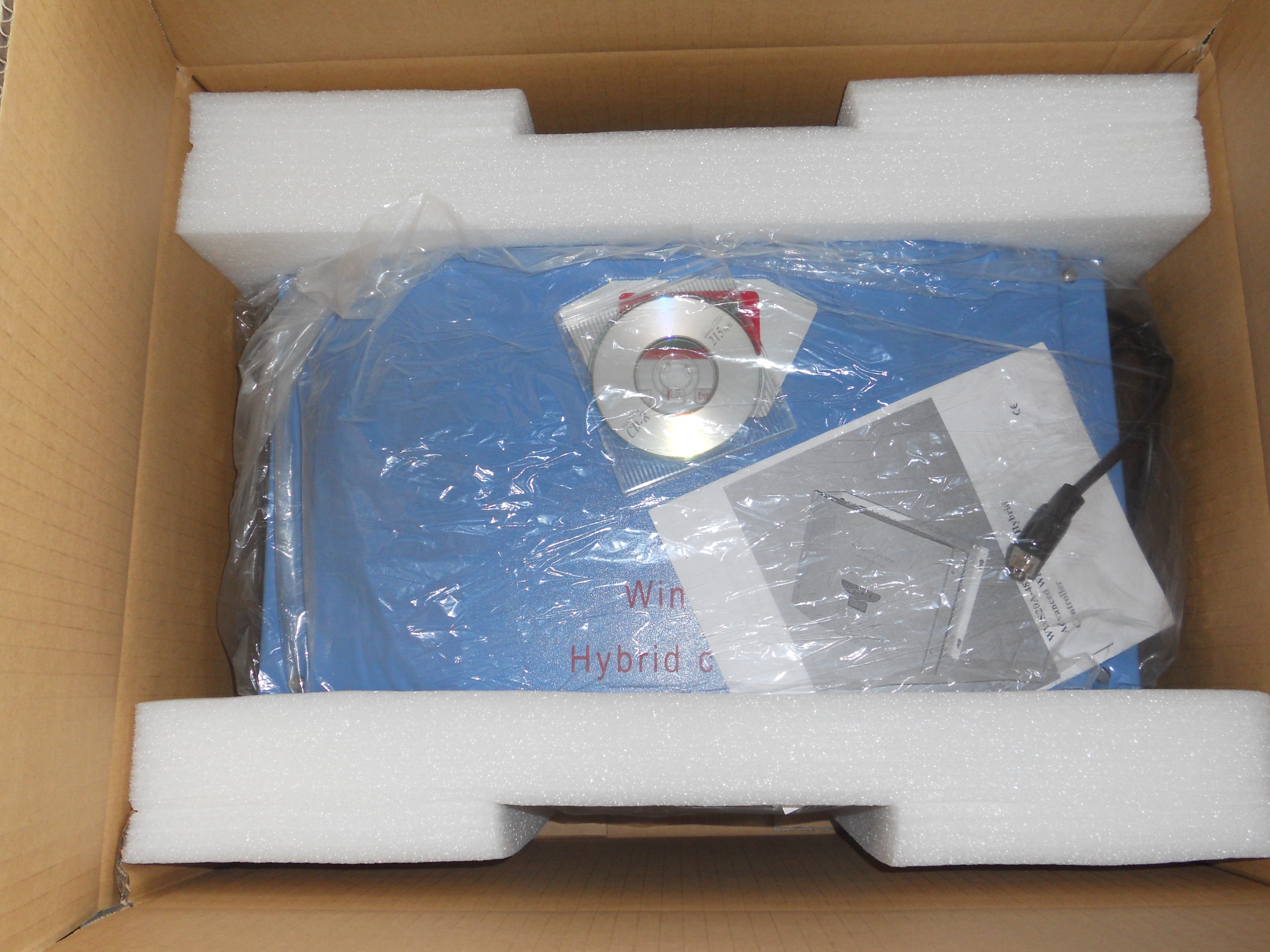

Packing


Company's Pictures



Our company can adjust parameters configuration according to customer’s requirement!
If you have questions and requirements, please contact us directly! We will reply you within 24 hours!
